HG7T

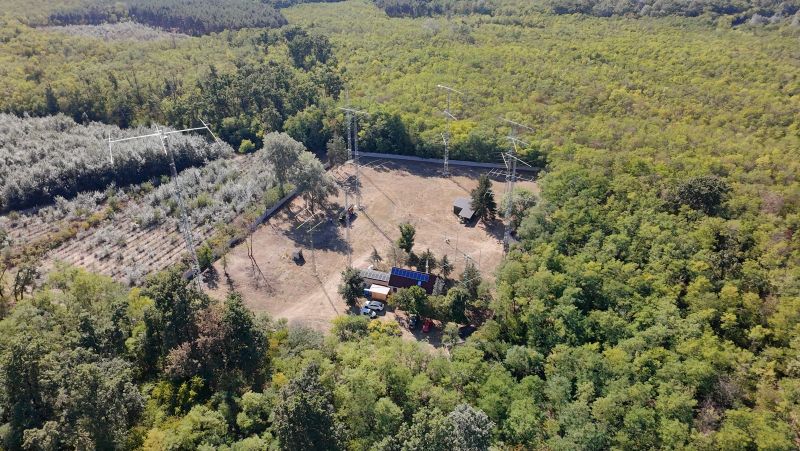

In 2010 I bought a forest-enclosed area close to Debrecen-Haláp. This area is located in a beautiful environment, away from the noise of civilization, capable of operating a modern, well-equipped contest station. There is an angling pond nearby, a forest trail and many wild animals. The QTH can also be reached by a forest narrow-gauge railway from Debrecen city.

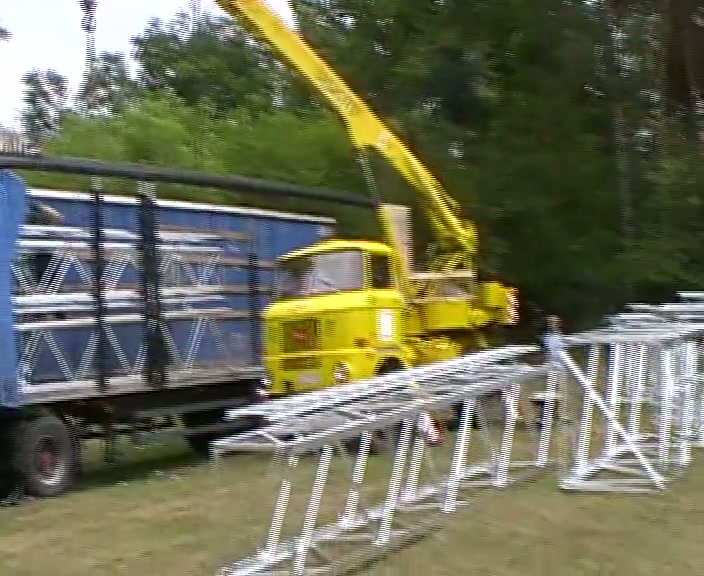

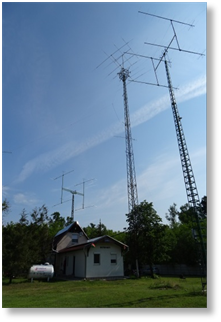

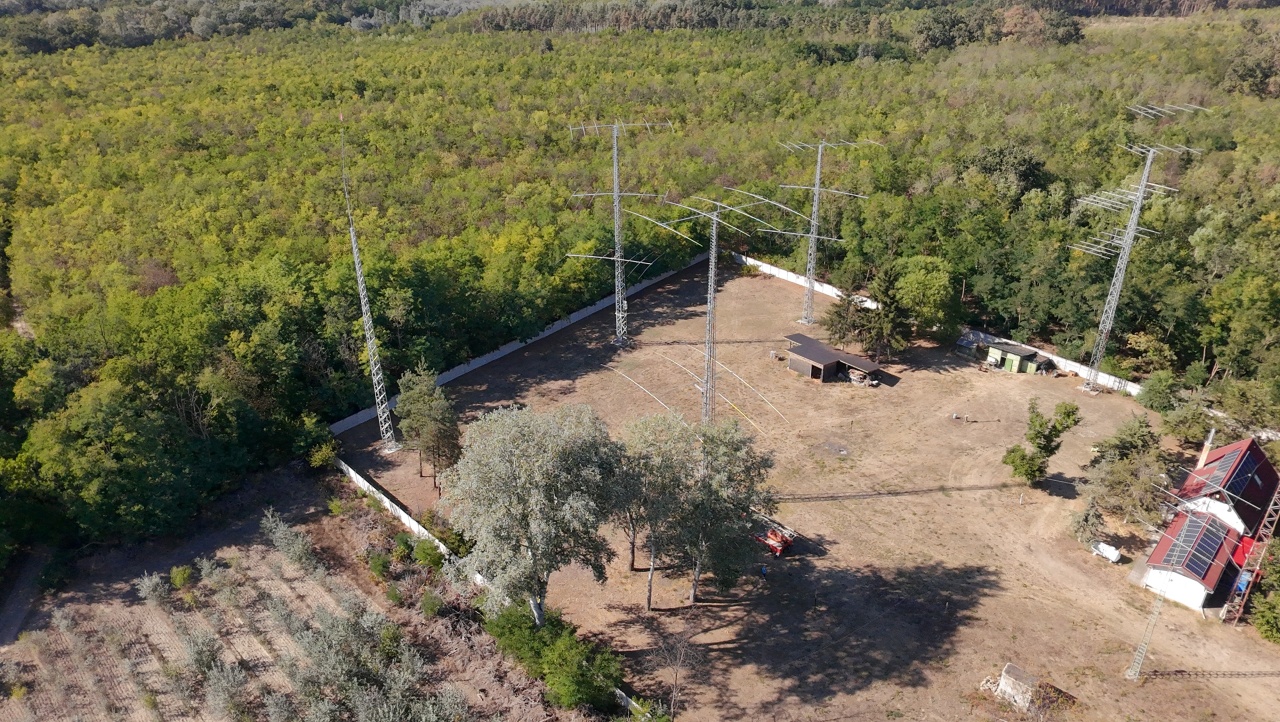

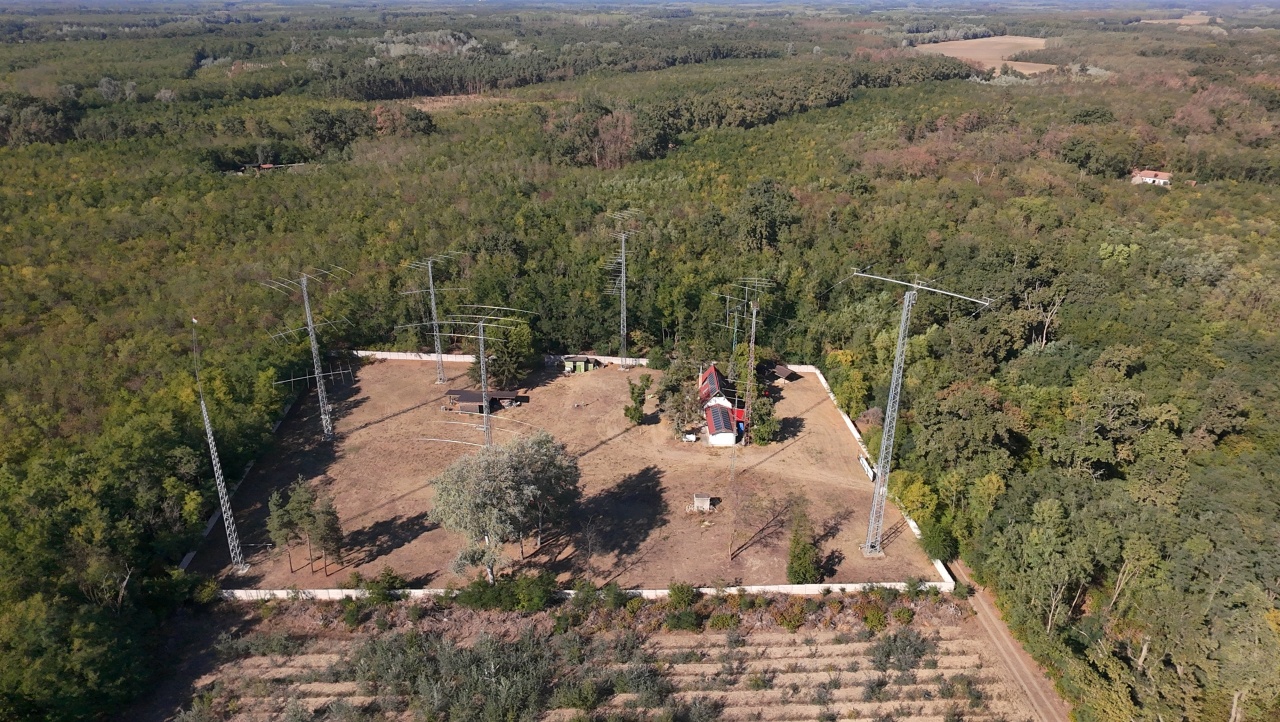

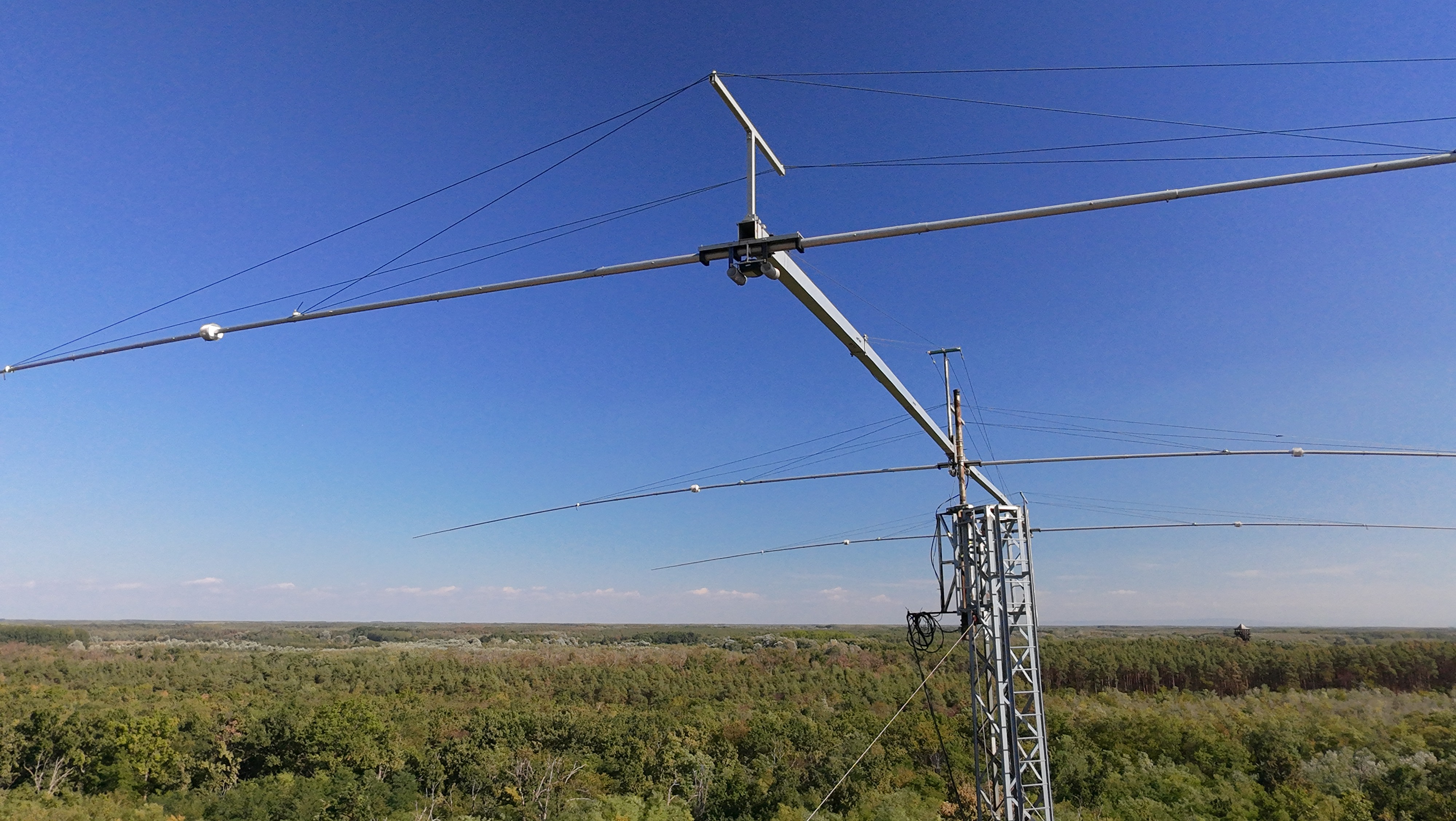

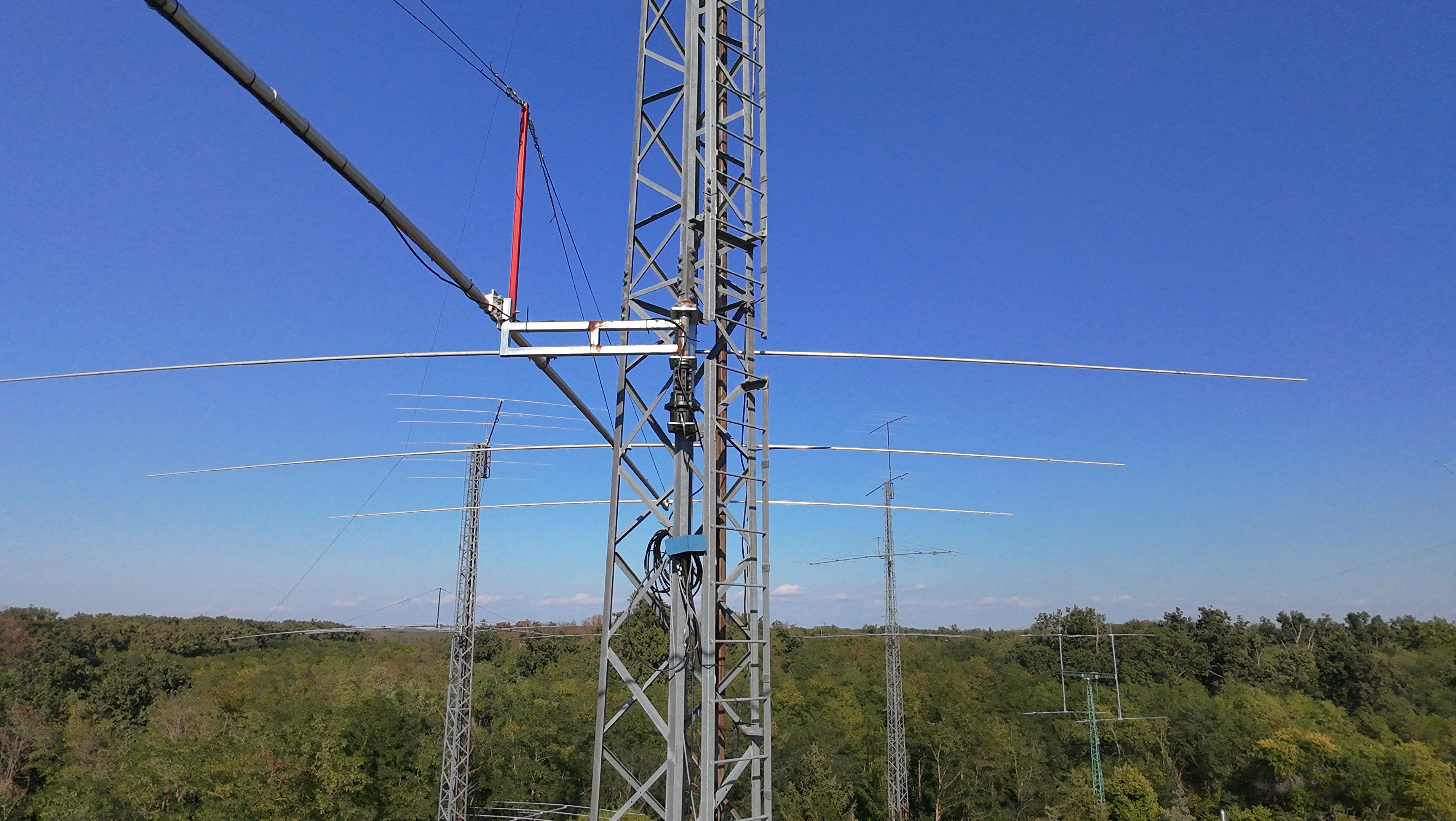

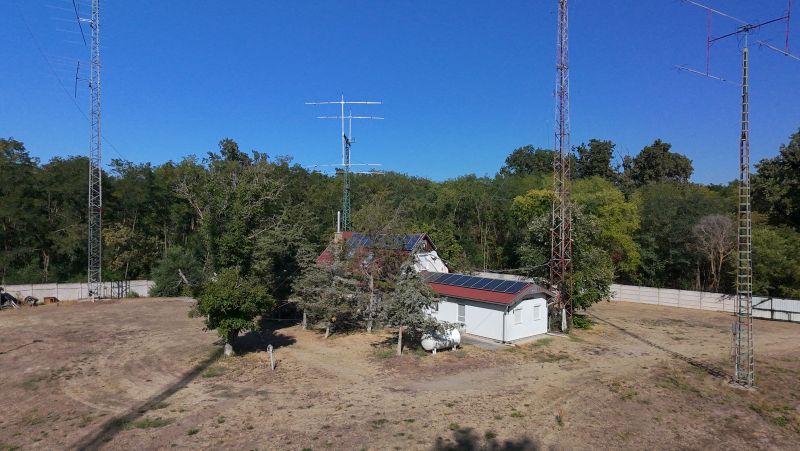

At the beginning, four new 35m high towers were built. On these we installed a 3 element monoband Yagi for 40 meters, 2x6 element array for 20, a 6 element Yagi for 15, and a 7 element monoband Yagi for 10. Since then the equipment is continuously improved. A 45m tall tower with a 3 element Yagi for 80 meters was added. The results and improvement of the contest station can be monitored in the photo album.

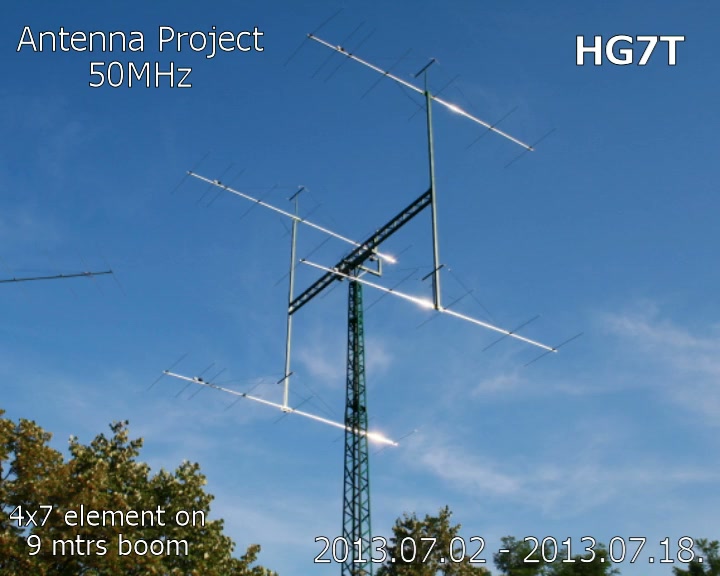

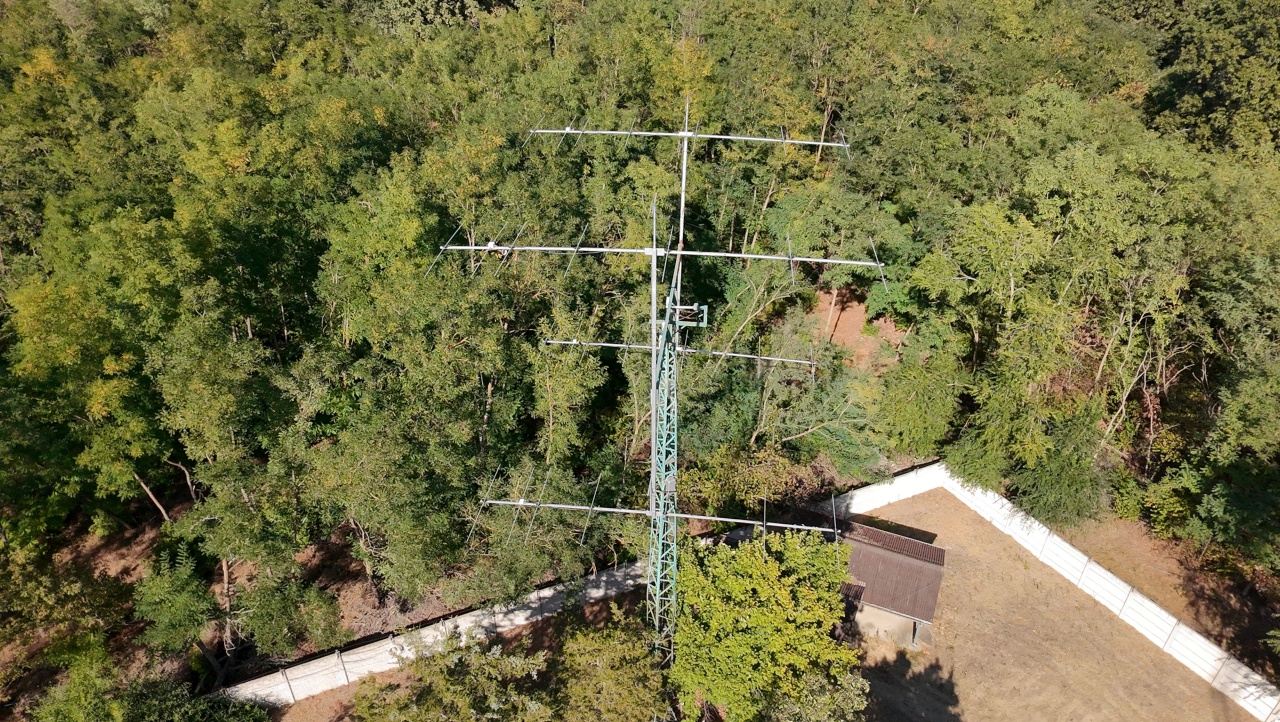

A team for multi-two was organized, new ideas and more new ideas came. An example is the development of the 6m antenna system, based on the concept of Steve HA0DU. Four 7 element YU7EF 0607 antennas were built in an array with up to 45 degrees of elevation, which can also be used for EME. This is the first and only 4 element array in Hungary, and there are only a few in Europe. This array brought us contacts with extremely rare DXCC entities on 6 meters. We strived to set up more antennas for each band, so 3x6 elements were installed for 20 and 15, while 3x7 elements for 10. Later I (HA7TM) also built a 4 element Quad for 10 meters, which was installed at about 50 meters high.

The 160m antennas were also continuously improved. We connected tower tops with perlon ropes, and three 40m tall wire verticals were installed in between towers. Two of those, aimed at the USA, are fed in 90 degrees for an antenna gain of 4.5dB. During the past five years, the operating team also changed a lot, when the current team was formed.

After a while we started winking on adding in-band work, so we installed 6 Beverage antennas and also a 4-band GP, which is about 300 meters from the main antennas. For a better control of all these antennas, we installed a better switching system. The 2m antenna system was also improved by adding 10 meters to the height, so the antennas "see" over the forest. The results were winning the HG National Championship three times. But on 2 meters the EME activity is also considered more important.

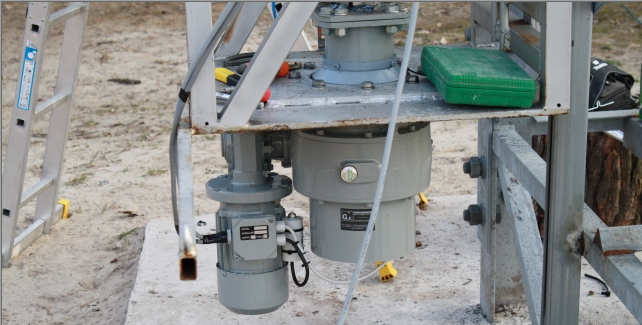

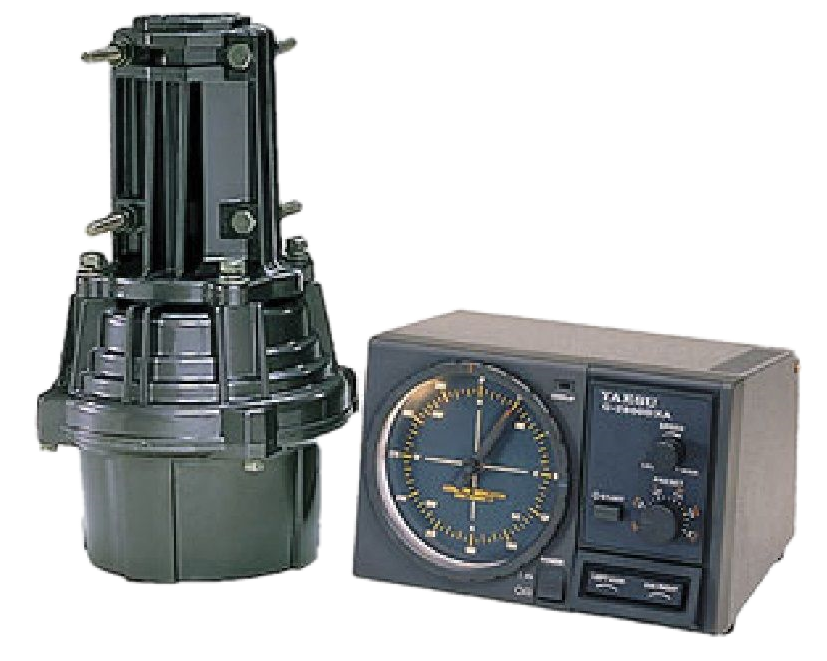

Currently the station is operational on almost all bands and modes. Unfortunately the station suffered a lightning strike in August of 2016. 13 antenna rotators and other equipment were lost. It took almost a year to get rebounded. But we continue contesting, we break our own records over and over, despite the conditions and contest activities are declining.

Since the station is in a remote place in a forest, it is difficult to show our activities to the youth. There are very few young operators in general. True it is, we do not really have time to train new operators, since most of the team are travelling from 150 to 300 kms to the QTH, and there is always a lot to do. Fixing and improving antennas, testing new antennas, or even running the Hungarian QSL Bureau.

Four years ago the Radio Club of Érd City took over the operation of the Hungarian QSL Bureau, managed by Csaba HG5DX. In 2018 we took on another four years. We do hope that the bureau is operating to everyone's satisfaction. Everyone receive their QSLs in time, even those who are not members of MRASZ.

Should you have any questions, do not hesitate to contact me!
Bye-bye, CU ON AIR!

73, Tibi / HA7TM

2010-ben vettem egy erdővel körülvett területet Debrecen-Haláp közelében. A terület gyönyörű környezetben, a civilizáció zajától távol található, alkalmas egy modern, jól felszerelt versenyállomás üzemeltetésére. A közelben horgásztó, erdei ösvény és sok vadállat található. A QTH elérhető a debreceni kisvasúttal is.

Kezdetben négy új, 35 m magas tornyot építettünk. Ezekre egy 3 elemes monoband Yagi-t szereltünk a 40 méterre, 2x6 elemes rendszert a 20-ra, egy 6 elemes Yagi-t a 15-re és egy 7 elemes monoband Yagi-t a 10-re. Azóta a felszerelés folyamatosan bővül. Egy 45 m magas torony 3 elemes 80m-es Yagi-val is felkerült.

Multi-two csapatot szerveztünk, új ötletek és még több új ötlet jött. Ilyen például a 6m-es antennarendszer fejlesztése, Steve HA0DU koncepciója alapján. Négy 7 elemes YU7EF 0607 antennát építettünk egy rendszerbe, akár 45 fokos eleváció eléréséig, ami EME-re is használható. Ez az első és egyetlen 4 elemes rendszer Magyarországon, és Európában is csak néhány van.

A 160m-es antennákat is folyamatosan fejlesztettük. A toronytetőket perlon kötelekkel kötöttük össze, és három 40 m magas drót vertikálist telepítettünk a tornyok közé. Kettő, az USA felé irányított, 90 fokos fázistáplálású, 4.5 dB antennyereséggel.

6 Beverage antennát és egy 4 sávos GP-t telepítettünk, ami kb. 300 méterre van a fő antennáktól. A 2m-es antennarendszert is fejlesztettük 10 méterrel magasabbra emelve, hogy az antennák "lássanak" az erdő felett. Az eredmény háromszoros magyar bajnoki cím lett.

Jelenleg az állomás szinte minden sávon és módban üzemel. Sajnos 2016 augusztusában villámcsapás érte az állomást. 13 antennaforgatót és egyéb felszerelést vesztettünk. Majdnem egy évbe telt a helyreállítás. De folytatjuk a versenyzést, újra és újra megdöntjük saját rekordjainkat.

73, Tibi / HA7TM
